Semi-Auto Glue Machine

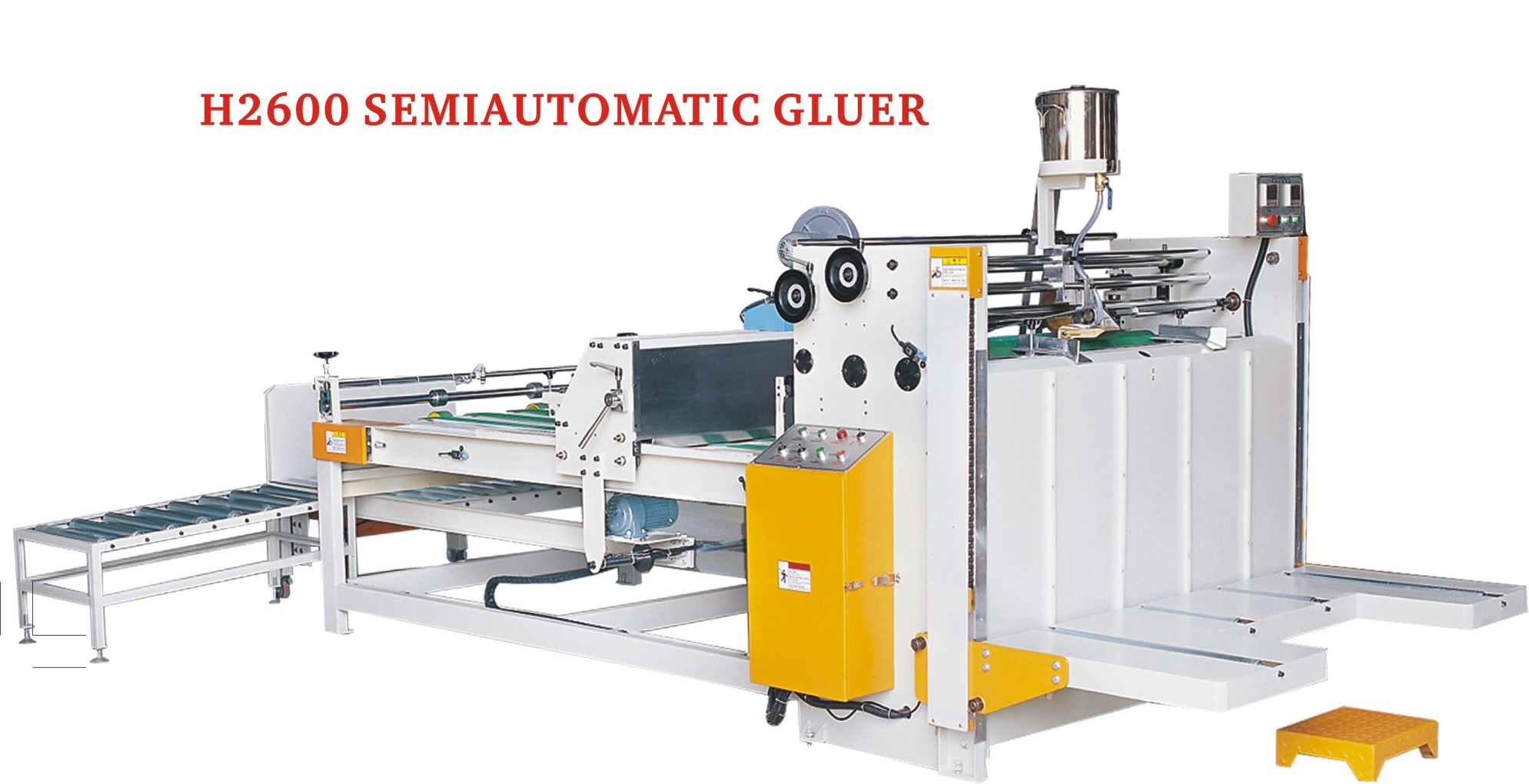

H2600 Semi-Auto Glue Machine
1. Machine introduction & application
It is the ideal equipment for the advanced exported cartons’ gluing.
1、The glue machine is one of the important equipment for the cartons’ shaping.
2、It adopts multi-gluing rollers to press and glue in same speed to make the carton’s gluing balance, firm and level.
3、Using the materials that match the National Standards to weld, the wallboard of the machine adopts high strength cast iron,
and it is totally enclosed type which is clean and no noise.
4、It suitable for 3 ply or 5 ply or 7ply different sizes corrugated sheets to glue. This machine has high efficiency.
5、The advantages are gluing firmly, easy and convenient to operate, saving workers and electricity, working steadily.
2.Specifications :
| Max Feeding Size | 2600mm |
| Min Feeding Size | 640mm |
| Max Pass Size | 1500mm |
| Min Pass Size | 300mm |
| Applying | 3ply 、5ply 、7ply |
| Motor Power | 2.5KW |
| Weight | 2500KG |
| Speed | 50m/min |
| Max Work Size | 5500mm |
| Outside size | 4800*2000*2000mm |
