Double Sheet Semi-auto High Speeding stitcher
Double Sheet Semi-auto High Speeding stitcher
Model: WS-2000A /WS-3000A
Features:
Double Sheet High Speeding semi-auto stitcher belongs to the carton forming machine with high speed and high efficiency stitching. It can promotes product output efficiency and expands the capacity, also provides more flexible production scheduling for the producer, and can save time, materials and labor costs at the same time.
Double Servo System adopted from YASKAWA, Asian well-known brand. Machine can be one set for dual purpose, easy to operate without any experience. It’s safe and stable with low fault rate can avoid much maintenance.
- The size can be all automatically adjusted, 350 pcs of nails can be stitched per minute, and size can be quickly changed within 2-3 minutes.
- Stitching ways can be chosen with single, double and fortified.
- Auto Counter at the feeding part can set the number of the pack; the box will come out in pack.
- Applicable for the big boxes, quick stitching and saving force.
- The stitching pitch is automatically adjusted by PLC and Computer.
- The user interface is easy to operate.
- The machine is applicable for stitching the 3-5ply corrugated boxes, no mater if or not the box is with bottom but no cover.
- The bench adopts the automatic system to control its lifting and descending which can be automatically up or down in accordance with the height of paper stacking.
- The stitching head assemblies are made from special steel through precise grinding. It’s efficient and durable can greatly increase the stitching speed.

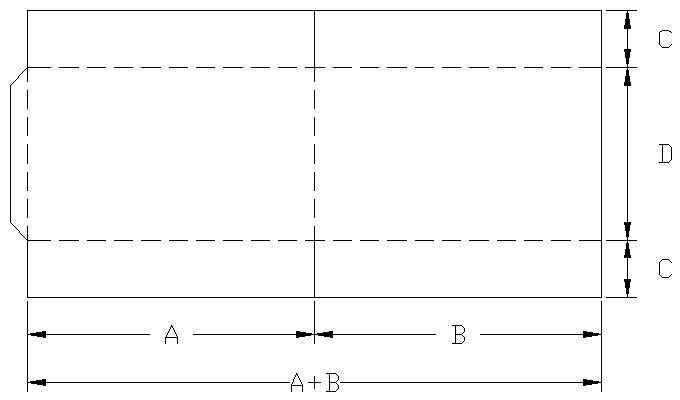

Technical Parameter：
| Max.Size（A＋B）×2：4000mm/6000mm | C+D+C Min Height：400mm |
| （A＋B）×2：1060mm | Machine Size：6000*3500mm/6000*4200mm |
| Max. Length A： 1850mm/ 2850mm | Machine Speed：450stitches/min |
| Min. Length A： 350mm | Stitching Pitch：30-120mm |
| Max. Width B： 1000mm/1500mm | Stitching No.：2-50stitches |
| Min. Width B： 135mm/160mm | Total Weight：4000kg/4500kg |
Electric Components
| 1 | Touch Screen： | K-TEK, Taiwan |
| 2 | PLC PLC： | FATEK, Taiwan |
| 3 | Thermorelay： | Schneider |
| 4 | A.C Contactor： | Schneider |
| 5 | Intermediate Relay： | IDEC |
| 6 | Button Switch： | Schneider |
| 7 | Photoelectric or Proximity Switch： | CONCH, Taiwan |
| 8 | Travel Switch： | TEND, Taiwan |
| 9 | Solenoid Valve： | AIRTAG |
| 10 | Servo Motor | YASKAWA, Japan |
