Automatic Simple Down Stacker

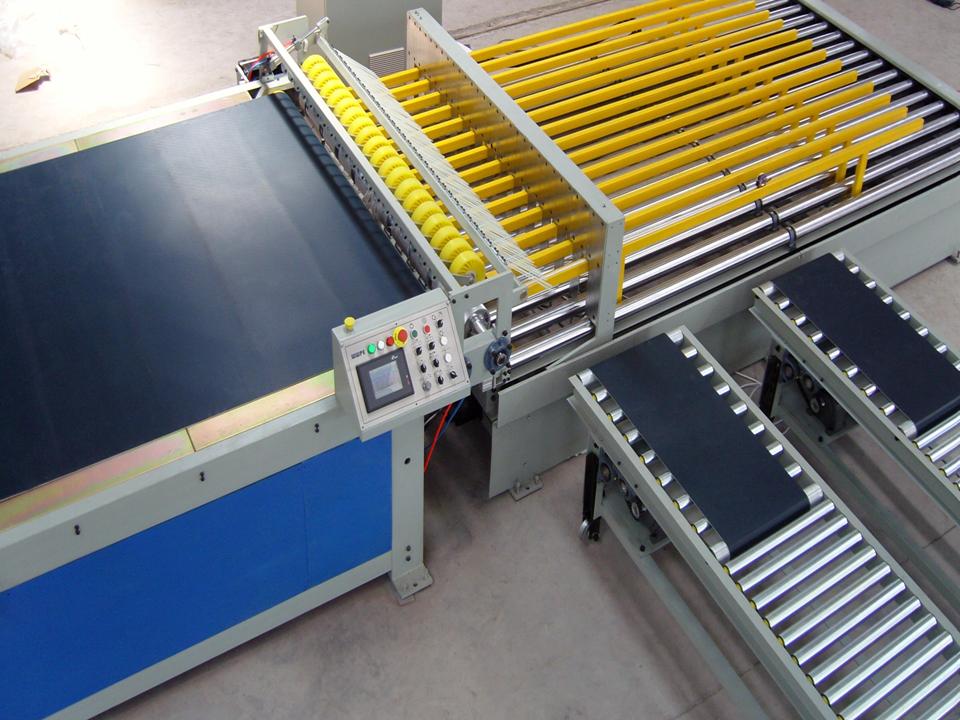

Automatic Simple Down Stacker NDS-B Series

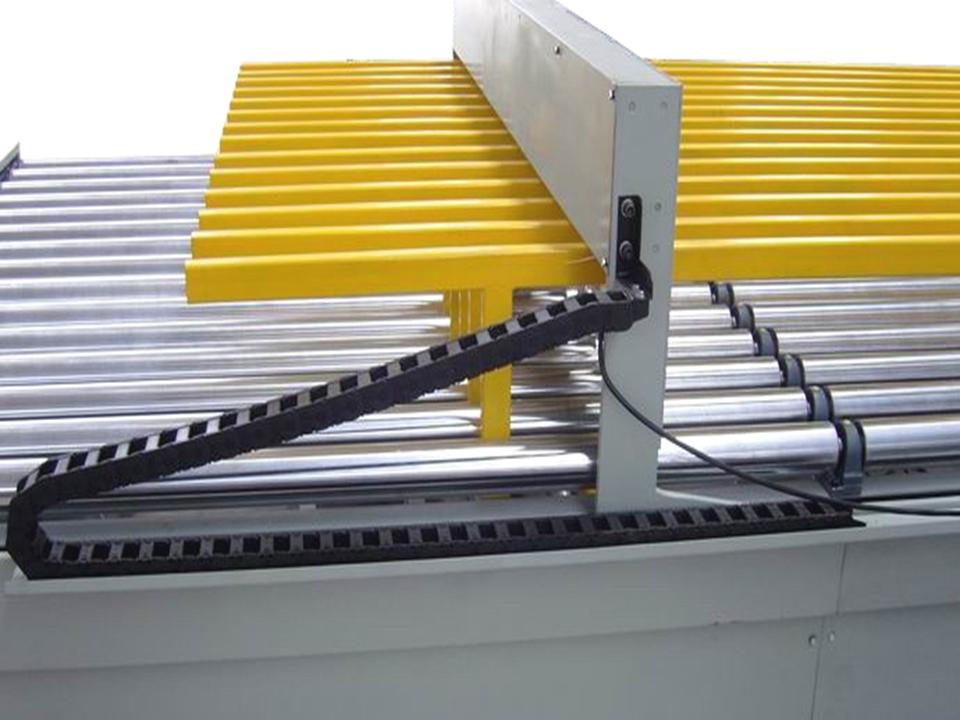

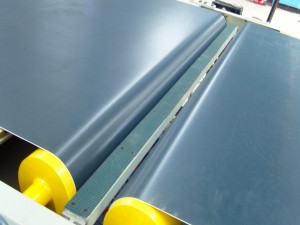

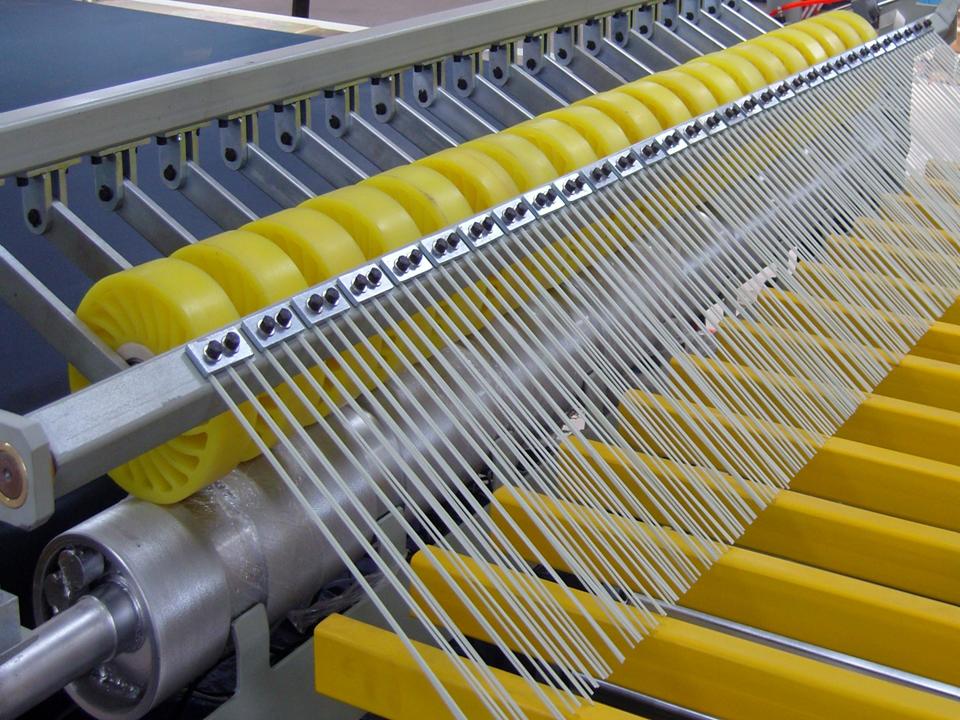

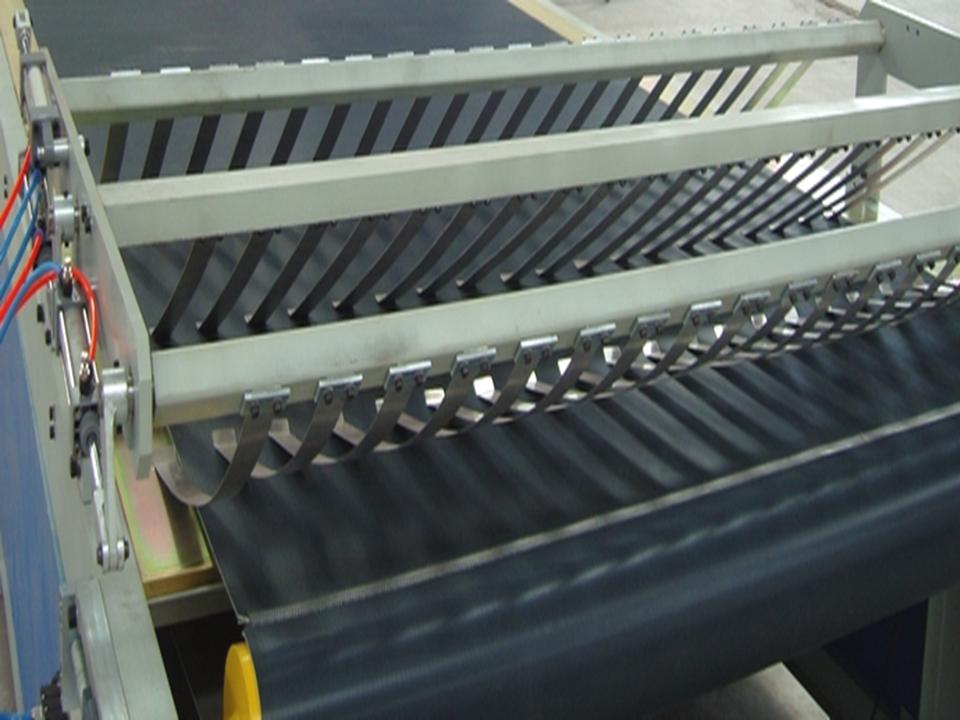

1.NDS-B Series Automatic Simple Down Stacker is placed at the end of a corrugated paper board production line. It receives paperboards coming out from the cutoff machine, conveys them through the conveyor sections, then stacks them at preset quantity into piles, finally the piles are ejected transversly.

2.It conveys, counts，stacks and ejects automatically after needed data was input.

3.It can be connected with production management system, thus to realize synchronization with production line speed, automatic order change and pile change.







































Important Parts List

Seq	Name	Specification	Brand
1	HMI	5.7″ touch screen	eview

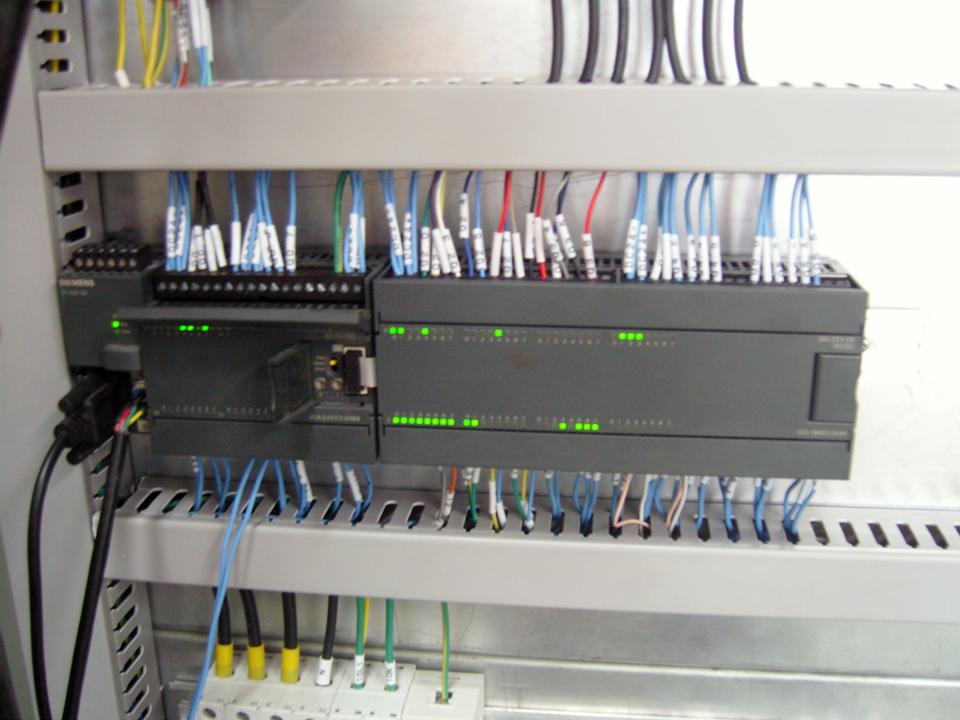

2	Main computer	PLC	SIEMENS
3	Controller for convey	AC controller	Delta
4	Motor for convey	AC motor	Fuland
5	Controller for move	AC controller	Delta
6	Motor for move	AC motor	Fuland
7	Controller for lift	AC controller	Delta
8	Motor for lift	AC motor	Fuland
9	Conveyor belt		RAPPLON
10	Encoder		metronix
11	Approximate switch		Autonics
12	LV apparatus	Air switch, AC contractor, etc.	Shneider
13	Main bearing		NSK

Specification

Automatic Simple Down Stacker NDS-B Series
Model	NDS-1415X-B	NDS-1615X-B	NDS-1815X-B	NDS-2215X-B	NDS-2515X-B
Effective Width(or to client’s request)	1400mm	1600mm	1800mm	2200mm	2500mm
Economic Speed	150 m/min	150 m/min	150 m/min	150 m/min	150 m/min
Max. Stack Height	300mm	300mm	300mm	300mm	300mm
Standard power supply	380V 50HZ 3Phase 4Lines
Overall power	about 8KW
Overall weight	about 3 Tons
Overall length	about 12.5m
Automatic Simple Down Stacker NDS-B Series
Model	NDS-1420X-B	NDS-1620X-B	NDS-1820X-B	NDS-2220X-B	NDS-2520X-B
Effective Width(or to client’s request)	1400mm	1600mm	1800mm	2200mm	2500mm
Economic Speed	200 m/min	200 m/min	200 m/min	200 m/min	200 m/min
Max. Stack Height	450mm	450mm	450mm	450mm	450mm
Standard power supply	380V 50HZ 3Phase 4Lines
Overall power	about 8KW
Overall weight	about 3 Tons
Overall length	about 12.5m
