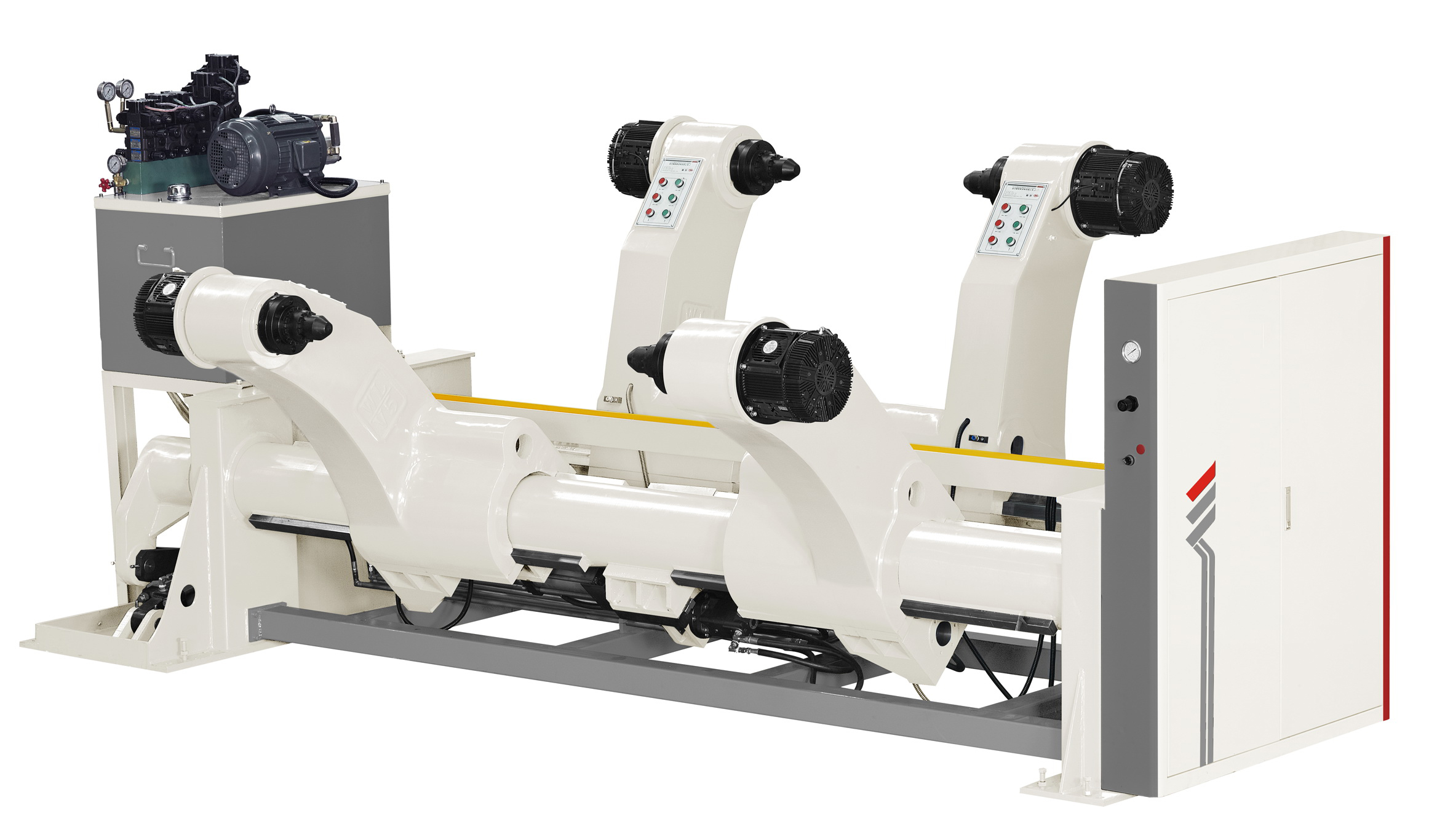

Hydraulic Mill Roll Stand MRV5

Hydraulic Mill Roll Stand MRV5

Specification

Driven through the Ball Screw, the reel arm is moved by the hydraulic cylinder according to the light sensor checking, realizing automatic alignment.

All movements of machine arms are driven by hydraulic system.

Pneumatic system controls the tension and multi-point braking is adopted.

The sliding keys are welded together with the main shaft, guaranteeing a better endurance.

Standard clamping part: 3-Inch in Dia. , expandable.

Paper roll can be fed from the left or the right side.



Technical Parameters

Max Paper Roll Dia 1500mm

Min Paper Roll Dia 320mm

Max Paper Roll Weight：       4.5 tons

2200mm Machine: Max effective Width–2300mm, Min Effective Width–1000mm

2500mm Machine : Max effective Width–2600mm, Min Effective Width–1000mm
