N.C. Slitter Scorer ZC 22
N.C. Slitter Scorer ZC 22 Design Speed 300m/min Working Speed 250m/min Effective Width 1800mm、2200mm Slitter and Scorer Combo 5 slitters and 4 scorers + 4 scorers 6 slitters and 10 scorers + 10 scorers Min scoring distance 150mm（Single Set） 0mm（Double Sets） Slitting Precision ±0.75mm
Read More
N.C. Helical Cut Off HC25
N.C. Helical Cross Cutter HC25 Design Speed 250m/min(Standard) 300m/min(Optional) Effective Width 1800mm、2200mm Cutting Length 500mm-9000mm Cutting Precision ±1mm Control System AC Servo Working Speed: 100m/min when cutting length is 500mm
Read More
Glue Machine GU203/GU205/GU207
Glue Machine GU203/GU205/GU207 Effective Width 1600mm、1800mm、2000mm、2200mm Design Speed 250m/min
Read More
Cassette single facer SFK30
Cassette single facer SFK30 Specification The negative pressure is given by suction blower and allows for flute shaping; Circle-sealed casting iron structure of the machine body frame ensures the high strength and less vibration for the machine. The corrugator rolls are assembled at the lower part of the machine, so the gravity center of the machine is lower. This …
Read More

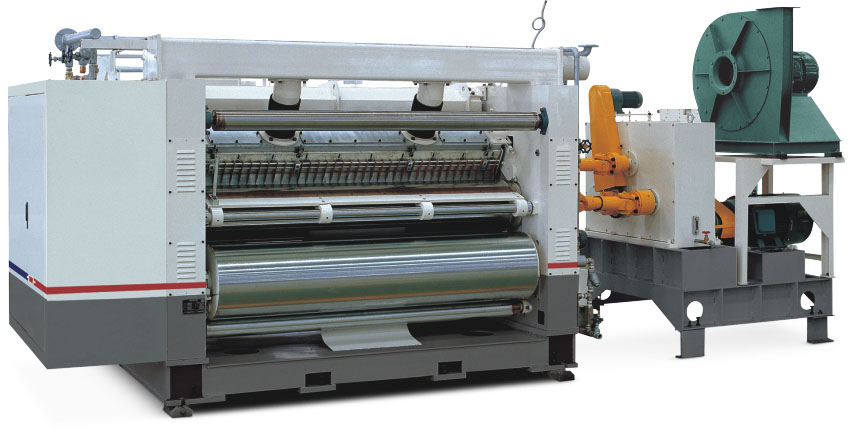

Single Facer SF20
Single Facer SF20 Corrugator Roll Dia. Top Roll Dia. Φ320mm Bottom Roll Dia. Φ340mm Glue Roll：Φ246mm Doctor Roll：Φ150mm Effective Width 1600mm、1800mm、2000mm Main Motor Power 22KW-30KW Design speed 200m/min Heat Source Steam
Read More
Single Facer SF12
Single Facer SF12 Corrugator Roll Dia Top Roll Dia. Φ282mm Bottom Roll Dia. Φ282mm Glue Roll Dia.：Φ196mm Doctor Roll Dia.：Φ124mm Effective Width : 1400mm、1600mm、1800mm Main Motor Power: 22KW-30KW Working Speed : 120m/min Heat Source : Steam
Read More
Pre-heater/ Pre-conditioner
Pre-heater/ Pre-conditioner PHN100/PCN100 Specification The cylinder surface is polished. Inverter Motor controls the rotation of the heating cylinder according to the full line speed. Stable guiding rolls work together with movable guiding rolls to ensure a max wrapping angle of 360°. Technical Parameters Cylinder Dia. 1000mm Effective Width 1600mm、1800mm、2200mm、2500mm、2800mm Wrapping angle 360°
Read More
Automatic Hydraulic Mill Roll Stand MRV6
Automatic Hydraulic Mill Roll Stand MRV6 Specification Automatically clamps the core of the paper roll with high precision Driven through the Ball Screw, the reel arm is moved by the hydraulic cylinder according to the light sensor checking, realizing automatic alignment. All movements of machine arms are driven by hydraulic system. Pneumatic system controls the tension and multi-point braking is …
Read More
Hydraulic Mill Roll Stand MRV5
Hydraulic Mill Roll Stand MRV5 Specification Driven through the Ball Screw, the reel arm is moved by the hydraulic cylinder according to the light sensor checking, realizing automatic alignment. All movements of machine arms are driven by hydraulic system. Pneumatic system controls the tension and multi-point braking is adopted. The sliding keys are welded together with the main shaft, guaranteeing …
Read More
Hydraulic Mill Roll Stand MRV4
Hydraulic Mill Roll Stand MRV4 Max Paper Roll Dia. 1500mm Max Paper Roll Weight 2.5 tons Effective Width 1800mm Machine (Single Multi-brake) : Max Paper Roll Width–1850mm Min Paper Roll Width—500mm 2000mm Machine (Single Multi-brake) : Max Paper Roll Width–2050mm Min Paper Roll Width—500mm
Read More
The 3Ply,5Ply,7Ply corrugated cardboard production line
Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard. The 3ply, 5ply, 7ply, and multi-function corrugated cardboard production line mainly consist of the following equipment: Mill Roll Stand, surface paper (core-paper) pre-heater. Single facer, Conveying Span Bridge. Glue Application Machine, Double Facer. Slitter Scorer, Cut-off, Conveyer and Stacker. Heating System, Air compression system and Glue Making System, …
Read More
